Extracting order paramaters with SR

import jax
from jax import numpy as jnp
import matplotlib.pyplot as plt
import pickle

Tutorial 2: SR

In this second tutorial, using the J1J2 model (see tutorial 1), we show how the symbolic regression (SR) tools implemented in qdisc can be used. These methods aim to identify compact analytic descriptors of latent clusters, which can often be interpreted as candidate order parameters.

The main entry point is the qdisc.sr.SymbolicRegression() class. It is initialized by specifying the following attributes:

  • the dataset (an instance of qdisc.Dataset),
  • the index (in \(\theta\)-space) of the cluster to be analyzed,
  • the objective used to define the loss / fitness function:
    • a classification objective (SR1),
    • a boundary-matching objective in \(x\)-space (SR2),
    • a boundary-matching objective in \(\theta\)-space (SR3),
  • for SR1, the indices of data points labeled as outside the cluster,
  • For SR2 and SR3, the VAE should also be given with the index of the latent variable where the cluster appear
  • for SR3, the method used to construct the projector \(v_k\) (currently 'delta' or 'cp').

In addition, the search space of the symbolic expression must be specified. qdisc currently supports two options: - a two-body correlator ansatz, \[ f(x) = \sum_{i,j>i} \alpha_{i,j}\, x_i x_j + b, \] - a more expressive search space based on genetic programming. By setting the option to 'genetic', qdisc interfaces with PySR. For the moment, this is only available with the SR1 objective. For further details, we refer the reader to the PySR documentation: https://github.com/MilesCranmer/PySR

In the following, we use qdisc to identify a symbolic expression characterizing the Néel phase, employing the two-body correlator ansatz and comparing the different symbolic regression objectives.

## load/create the necessary objects
from qdisc.nn.core import EncoderCNN2D, ARNNDense
from qdisc.vae.core import VAEmodel
from qdisc.sr.core import SymbolicRegression
from qdisc.sr.core import spearman_rho
from qdisc.sr.core import auc_from_scores_labels
from qdisc.dataset.core import Dataset

#dataset
with open('J1J2_data_cpVAE2_QDisc.pkl', 'rb') as f:
    all_data = pickle.load(f)

all_J2 = jnp.linspace(0, 1.5, 21)
all_h = jnp.linspace(0, 2., 21)[1:]

dataset = Dataset(data=all_data['data'], thetas=[all_J2, all_h], data_type='discrete', local_dimension=2, local_states=jnp.array([0,1]))

#vae
N = 9
encoder = EncoderCNN2D(latent_dim=5, conv_features = 4*N, dense_features = 4*N, num_conv_layers=3)
decoder = ARNNDense(num_layers=4, features=4*N)

VAE_model = VAEmodel(encoder=encoder, decoder=decoder)
VAE_params = all_data['params']
latvar = all_data['latvar']

classifying the Neel phase

We first try to look for a compact expression f(x) characterizing the Néel phase, which is defined bellow:

## we first specify the indexe of the cluster ##
# could use the GMM results, in this toy example, can also just set a threshold
mu0abs = latvar['mu0_abs']
threshold = 0.5
# ! the idx are related to dataset thetas order, if latvar were computed using (1,0) order (as before), need to transpose
cluster_idx_in_neel = jnp.argwhere(mu0abs.transpose()<threshold)

# also compute a label array (used later to compute the auc)
labels_neel = jnp.zeros_like(jnp.mean(dataset.data, axis=(-1,-2)))
for id in cluster_idx_in_neel:
  labels_neel = labels_neel.at[id[0],id[1]].set(1)
labels_neel = labels_neel[:10,:].reshape(-1)

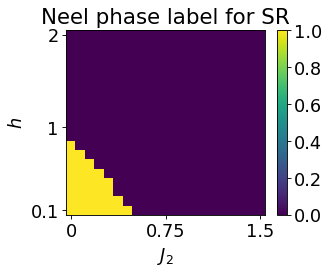

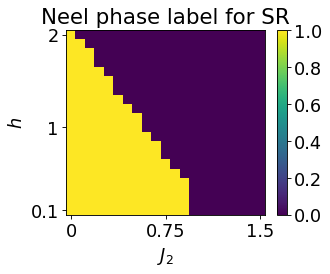

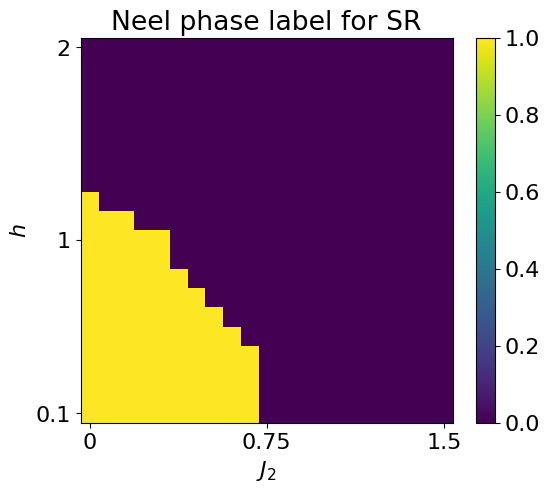

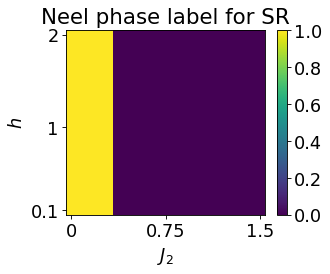

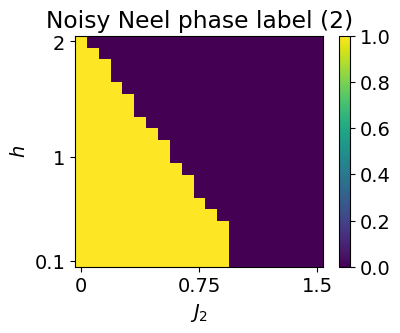

plt.rcParams['font.size'] = 16
plt.figure(figsize=(6,5),dpi=100)

plt.imshow(jnp.flipud(mu0abs<threshold), aspect='auto')
plt.colorbar()
plt.title(r'Neel phase label for SR')
plt.yticks([0,10,19], ['2', '1', '0.1'])
plt.xticks([0, 10, 20], ['0', '0.75', '1.5'])
plt.ylabel(r'$h$')
plt.xlabel(r'$J_2$')
plt.show()

After initializing a SymbolicRegression object, the symbolic search can be launched by simply calling the .train() method.

For the two-body correlator ansatz, qdisc provides visualization utilities to help interpret the learned expression. In particular, the .plot_alpha() method displays the learned coefficients \(\alpha_{i,j}\), given the specified topology of the quantum system.

Once a symbolic expression \(f(x)\) is obtained, its predictions can be computed and visualized using the .compute_and_plot_prediction() method.

Finally, to quantify the quality of the symbolic descriptor \(f(x)\), one can compute the Spearman correlation coefficient between the model predictions and a reference physical observable (here, the nearest-neighbour correlator).

## we then perform SR1 on the neel phase ##

mySR = SymbolicRegression(dataset, cluster_idx_in_neel, objective='SR1', search_space = "2_body_correlator")
key = jax.random.PRNGKey(3246)
res = mySR.train(key, dataset_size=2000)

## plot the alpha ##
topology = [[0,1,2],[5,4,3],[6,7,8]]
mySR.plot_alpha(topology=topology, edge_scale=5, name='SR1')

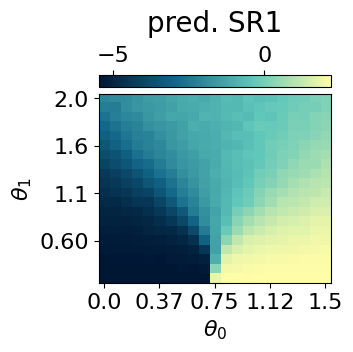

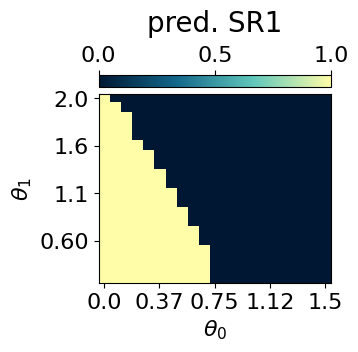

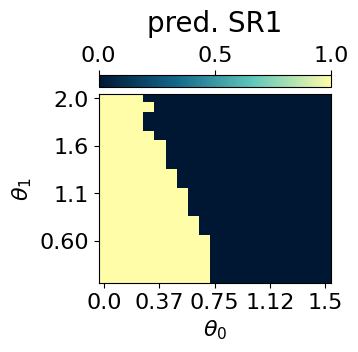

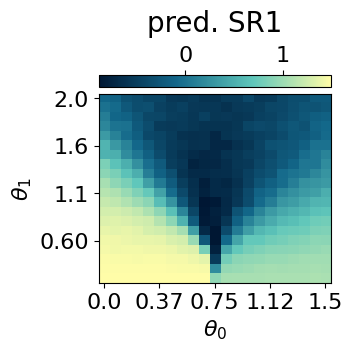

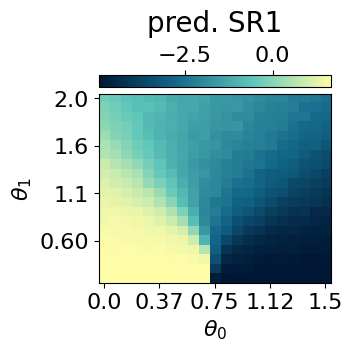

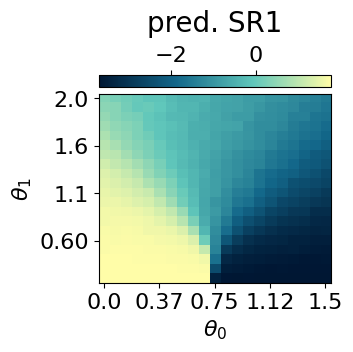

## plot the prediction ##

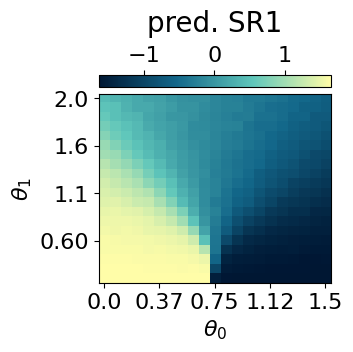

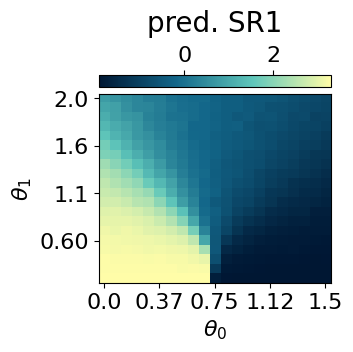

p = mySR.compute_and_plot_prediction(name='SR1')

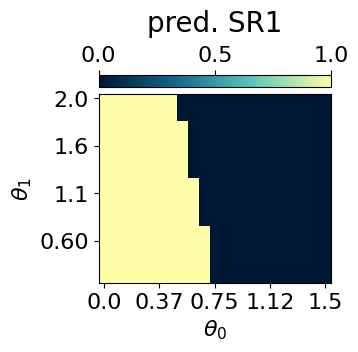

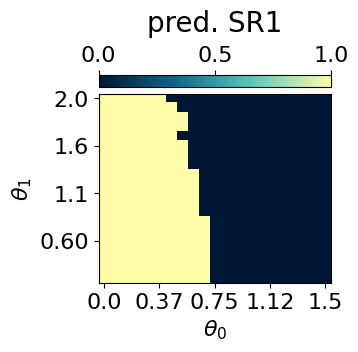

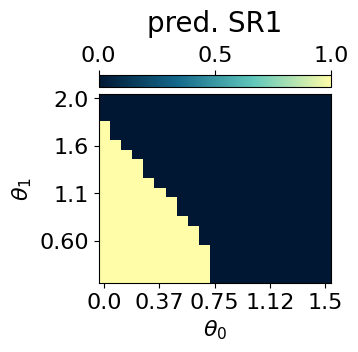

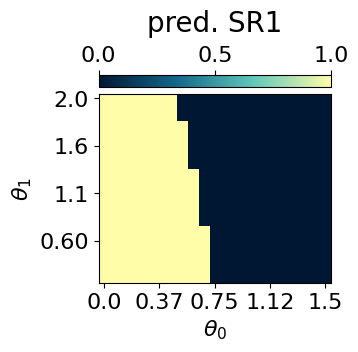

_ = mySR.compute_and_plot_prediction(name='SR1', class_pred=True)

## containers to save the results
all_alpha_neel = {}
all_alpha_neel['SR1'] = mySR.model.alpha
all_prediction_fx_neel = {}
all_prediction_fx_neel['SR1'] = p

## compute the spearman ##
#only on the left part of the parameter space where the Neel phase is
a = p[:,:10].transpose().reshape(-1)
c = all_data['corr_exact'][:10,:].reshape(-1)
s = jnp.abs(spearman_rho(a, c))

print('spearman between pred and exact corr: ', s)

## compute the auc ##
scores = p.transpose()[:10,:].reshape(-1)
#for classification, we could use the final classification for the score: p>0. But it is unfair with the other SR which are not binary.
auc = auc_from_scores_labels(scores, labels_neel)

print('auc: ', auc)
### Start preparing the dataset ###
### Dataset prepared, start the trainnig ###
### Training finished ###
  message: CONVERGENCE: NORM OF PROJECTED GRADIENT <= PGTOL
  success: True
   status: 0
      fun: 0.3136450401569233
        x: [ 1.095e-01  5.870e-02 ...  1.315e-01  4.198e-01]
      nit: 24
      jac: [ 5.185e-06 -3.036e-06 ...  2.331e-07 -5.995e-07]
     nfev: 1036
     njev: 28
 hess_inv: <36x36 LbfgsInvHessProduct with dtype=float64>

spearman between pred and exact corr:  0.9766054
auc:  0.9994868637110015

The symbolic expression obtained using qdisc successfully characterises the Néel phase. It also have a quite regular structure which already give some insights about the physical interactions happening.

To have an even clearer structure, we can add a L1 regularization to the loss, as shown below.

res = mySR.train(key, dataset_size=2000, L1_reg=5, print_info=False)

mySR.plot_alpha(topology=topology, edge_scale=20, name='SR1 with L1')
all_alpha_neel['SR1_L1'] = mySR.model.alpha

This expression is especially insightful, as its structure naturally reflects the topology and interactions of the system.

An example of qdisc.sr.SymbolicRegression() using the genetic search space is available in the Rydberg example.

Using the two-body correlator ansatz, qdisc also allows further simplification of the learned coefficients \(\alpha_{ij}\) into a compact symbolic expression by calling PySR. This can be done via the .reduce_alpha() method. An example of this workflow is presented in the cluster Ising example.

Below, we will apply the other SR objectives and also look for expressions characterizing the striped and polarised phases. This will reproduce the results presented in the paper.

Characterising the Néel phase with the other SR objectives

SR2

## same but with the SR2 objective ##
mySR = SymbolicRegression(dataset,
                          cluster_idx_in_neel,
                          objective='SR2',
                          idx_mu_cluster=latvar['id_lat'][0],
                          VAE_model=VAE_model,
                          VAE_params=VAE_params,
                          mu_cluster = mu0abs.transpose())

key = jax.random.PRNGKey(456)
res = mySR.train(key)

## plot the alpha ##
topology = [[0,1,2],[5,4,3],[6,7,8]]
mySR.plot_alpha(topology=topology, edge_scale=3, name='SR2')

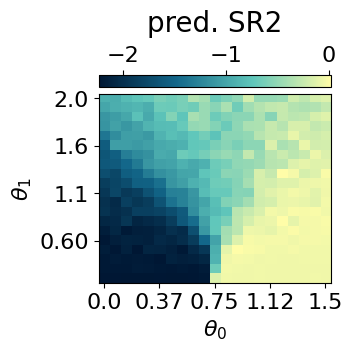

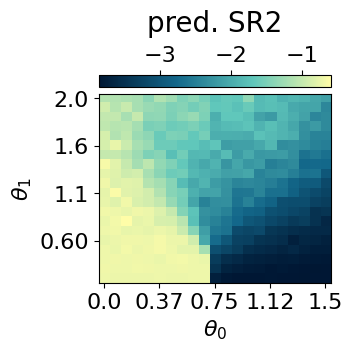

## plot the prediction ##

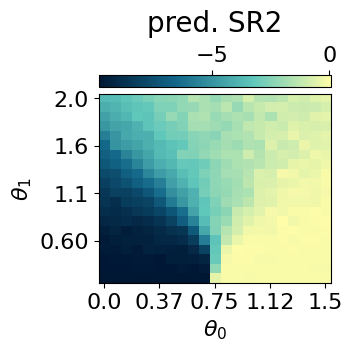

p = mySR.compute_and_plot_prediction(name='SR2')

all_alpha_neel['SR2'] = mySR.model.alpha
all_prediction_fx_neel['SR2'] = p


## compute the spearman ##
a = p[:,:10].transpose().reshape(-1)
c = all_data['corr_exact'][:10,:].reshape(-1)
s = jnp.abs(spearman_rho(a, c))

print('spearman between pred and exact corr: ', s)


## compute the auc ##
scores = p.transpose()[:10,:].reshape(-1)
auc = auc_from_scores_labels(scores, labels_neel)

print('auc: ', auc)
### Start preparing the dataset ###
### Dataset prepared, start the trainnig ###
### Training finished ###
  message: CONVERGENCE: RELATIVE REDUCTION OF F <= FACTR*EPSMCH
  success: True
   status: 0
      fun: 4881.1623685647
        x: [ 2.200e-03  1.492e-01 ...  1.189e-01  1.828e+00]
      nit: 52
      jac: [-1.728e-03  6.457e-03 ...  4.457e-03 -2.910e-03]
     nfev: 2146
     njev: 58
 hess_inv: <36x36 LbfgsInvHessProduct with dtype=float64>

spearman between pred and exact corr:  0.8680327
auc:  0.9802955665024629
## with L1 reg ##
res = mySR.train(key, dataset_size=2000, L1_reg=1, print_info=False)

mySR.plot_alpha(topology=topology, edge_scale=200, name='SR2 with L1')
all_alpha_neel['SR2_L1'] = mySR.model.alpha

SR3

## same but with the SR3 delta objective ##
mySR = SymbolicRegression(dataset, cluster_idx_in_neel, objective='SR3',
                                type_of_vk = 'delta',
                                idx_mu_cluster=latvar['id_lat'][0],
                                VAE_model=VAE_model,
                                VAE_params=VAE_params,
                                mu_cluster = mu0abs.transpose())
key = jax.random.PRNGKey(4352)
res = mySR.train(key)

## plot the alpha ##
mySR.plot_alpha(topology=topology, edge_scale=10, name=r'SR3$\Delta$')

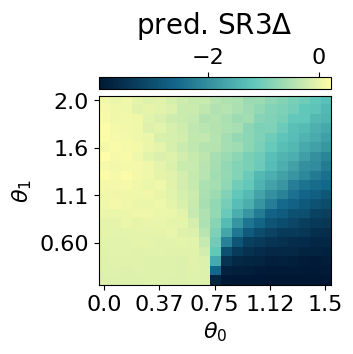

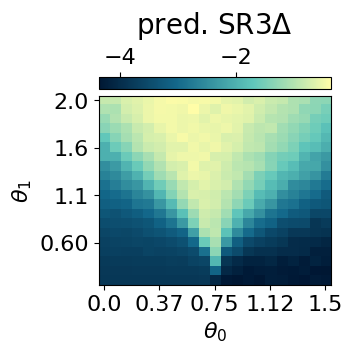

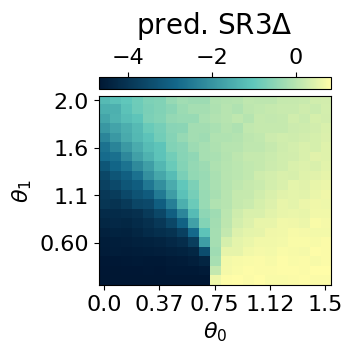

## plot the prediction ##
p = mySR.compute_and_plot_prediction(name=r'SR3$\Delta$')

all_alpha_neel['SR3delta'] = mySR.model.alpha
all_prediction_fx_neel['SR3delta'] = p


## compute the spearman ##
a = p[:,:10].transpose().reshape(-1)
c = all_data['corr_exact'][:10,:].reshape(-1)
s = jnp.abs(spearman_rho(a, c))

print('spearman between pred and exact corr: ', s)


## compute the auc ##
scores = p.transpose()[:10,:].reshape(-1)
auc = auc_from_scores_labels(scores, labels_neel)

print('auc: ', 1-auc)#grad matching doesnt impose <0 or >0 in the cluster, can just set what it has learned
### Start preparing the dataset ###
small MLP training started...
step: 0, loss: 1.3135101195052237
step: 200, loss: 0.02557339298028621
step: 400, loss: 0.01930058812059929
step: 600, loss: 0.015483271911861551
step: 800, loss: 0.011208458239182977
step: 1000, loss: 0.00790998208938923
step: 1200, loss: 0.006366884336649446
step: 1400, loss: 0.005594927228562557
step: 1600, loss: 0.00513847305819626
step: 1800, loss: 0.004802868143484069
small MLP training finished!

### Dataset prepared, start the trainnig ###
### Training finished ###
  message: CONVERGENCE: NORM OF PROJECTED GRADIENT <= PGTOL
  success: True
   status: 0
      fun: 4.741423295412271e-05
        x: [ 1.949e-01 -2.133e-01 ...  1.710e-01  1.932e-01]
      nit: 1
      jac: [-3.266e-06 -5.524e-07 ...  3.798e-06 -3.777e-06]
     nfev: 74
     njev: 2
 hess_inv: <36x36 LbfgsInvHessProduct with dtype=float64>

spearman between pred and exact corr:  0.9952689
auc:  0.9995894909688013

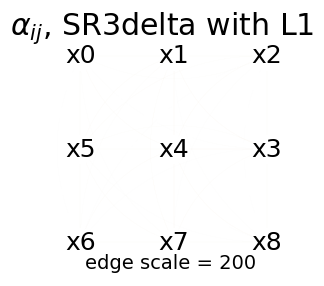

# with L1 reg #
res = mySR.train(key, dataset_size=2000, L1_reg=0.001, print_info=False)

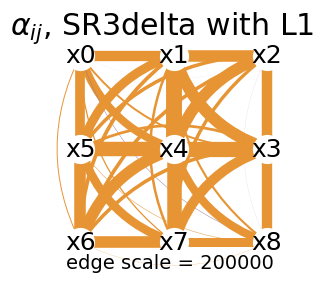

mySR.plot_alpha(topology=topology, edge_scale=200, name='SR3delta with L1')
all_alpha_neel['SR3delta_L1'] = mySR.model.alpha

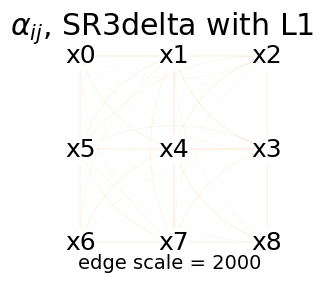

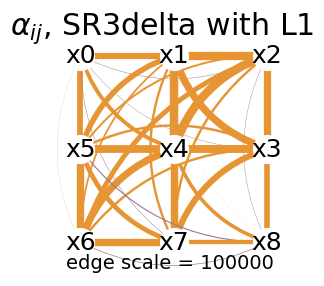

#cannot sparse the alphas, just put all toward zero -> scale the edged more to see a bit the structure
mySR.plot_alpha(topology=topology, edge_scale=2000, name='SR3delta with L1')
all_alpha_neel['SR3delta_L1'] = mySR.model.alpha

## same but with the SR3 cp objective ##
mySR = SymbolicRegression(dataset, cluster_idx_in_neel, objective='SR3',
                                type_of_vk = 'cp',
                                idx_mu_cluster=latvar['id_lat'][0],
                                VAE_model=VAE_model,
                                VAE_params=VAE_params,
                                mu_cluster = mu0abs.transpose())
key = jax.random.PRNGKey(78324)
res = mySR.train(key)

## plot the alpha ##

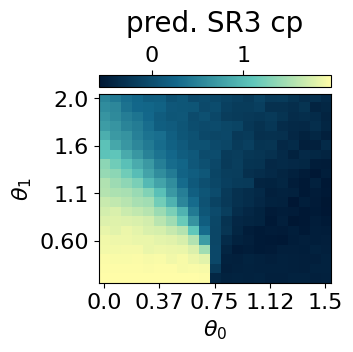

mySR.plot_alpha(topology=topology, edge_scale=5, name='SR3 cp')

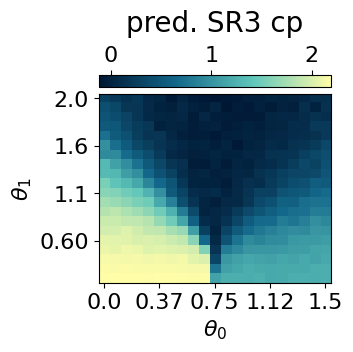

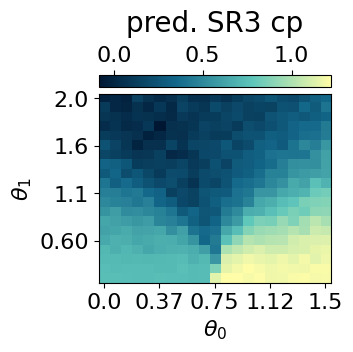

## plot the prediction ##
p = mySR.compute_and_plot_prediction(name='SR3 cp')

all_alpha_neel['SR3cp'] = mySR.model.alpha
all_prediction_fx_neel['SR3cp'] = p


## compute the spearman ##
a = p[:,:10].transpose().reshape(-1)#.reshape(10,-1)#all_prediction_neel_SR1[:,:10,:].reshape(10,-1)
c = all_data['corr_exact'][:10,:].reshape(-1)
s = jnp.abs(spearman_rho(a, c))

print('spearman between pred and exact corr: ', s)


## compute the auc ##
scores = p.transpose()[:10,:].reshape(-1)
auc = auc_from_scores_labels(scores, labels_neel)

print('auc: ', 1-auc)
### Start preparing the dataset ###
small MLP training started...
step: 0, loss: 0.8108281329182488
step: 200, loss: 0.022990639752391587
step: 400, loss: 0.018379645545828816
step: 600, loss: 0.013792992514905896
step: 800, loss: 0.007126792849677581
step: 1000, loss: 0.005054293962080803
step: 1200, loss: 0.004554070353060676
step: 1400, loss: 0.0041908284761713885
step: 1600, loss: 0.003924599748744378
step: 1800, loss: 0.0037443782009684433
small MLP training finished!

### Dataset prepared, start the trainnig ###
### Training finished ###
  message: CONVERGENCE: NORM OF PROJECTED GRADIENT <= PGTOL
  success: True
   status: 0
      fun: 3.028903275465175e-05
        x: [ 3.691e-02  2.518e-01 ...  3.132e-01  4.880e-02]
      nit: 3
      jac: [-1.199e-07 -1.170e-06 ...  2.010e-06 -1.214e-06]
     nfev: 148
     njev: 4
 hess_inv: <36x36 LbfgsInvHessProduct with dtype=float64>

spearman between pred and exact corr:  0.8883972
auc:  0.0034893267651889825
# with L1 reg #
res = mySR.train(key, dataset_size=2000, L1_reg=0.001, print_info=False)

mySR.plot_alpha(topology=topology, edge_scale=200, name='SR3cp with L1')
all_alpha_neel['SR3cp_L1'] = mySR.model.alpha

mySR.plot_alpha(topology=topology, edge_scale=2000, name='SR3cp with L1')
all_alpha_neel['SR3cp_L1'] = mySR.model.alpha

Characterising the Striped phase

Now we can do the same finding a symbolic function characterizing the striped phase. Here we will see that adding a L1 regularization can have significant impact on the structure of the optimal alpha

threshold = 1.2
cluster_idx_in_striped = jnp.argwhere(mu0abs.transpose()>threshold)

labels_striped = jnp.zeros_like(jnp.mean(dataset.data, axis=(-1,-2)))
for id in cluster_idx_in_striped:
  labels_striped = labels_striped.at[id[0],id[1]].set(1)
labels_striped = labels_striped[10:,:].reshape(-1)

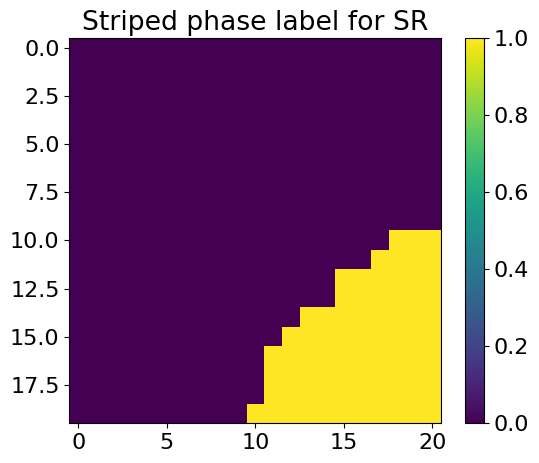

plt.rcParams['font.size'] = 16
plt.figure(figsize=(6,5),dpi=100)

plt.imshow(jnp.flipud(mu0abs>threshold), aspect='auto')
plt.colorbar()
plt.title(r'Striped phase label for SR')
plt.show()

SR1

## we then parform SR1 ##
mySR = SymbolicRegression(dataset, cluster_idx_in_striped, objective='SR1', search_space = "2_body_correlator")
key = jax.random.PRNGKey(451)
res = mySR.train(key, dataset_size=2000)

## plot the alpha ##
topology = [[0,1,2],[5,4,3],[6,7,8]]
mySR.plot_alpha(topology=topology, edge_scale=5, name='SR1')

## plot the prediction ##
p = mySR.compute_and_plot_prediction(name='SR1')
#_ = mySR.compute_and_plot_prediction(name='SR1', class_pred=True)

## containers to save the results
all_alpha_striped = {}
all_alpha_striped['SR1'] = mySR.model.alpha
all_prediction_fx_striped = {}
all_prediction_fx_striped['SR1'] = p


## compute the spearman ##
#only on the left part of the parameter space where the Neel phase is
a = p[:,10:].transpose().reshape(-1)
c = all_data['corr2_exact'][10:,:].reshape(-1)
s = jnp.abs(spearman_rho(a, c))

print('spearman between pred and exact corr: ', s)


## compute the auc ##
scores = p.transpose()[10:,:].reshape(-1)
auc = auc_from_scores_labels(scores, labels_striped)

print('auc: ', auc)
### Start preparing the dataset ###
### Dataset prepared, start the trainnig ###
### Training finished ###
  message: CONVERGENCE: NORM OF PROJECTED GRADIENT <= PGTOL
  success: True
   status: 0
      fun: 0.35385772926529285
        x: [ 2.416e-01  2.626e-01 ...  2.984e-01  5.520e-01]
      nit: 27
      jac: [ 1.138e-06 -2.831e-07 ...  1.443e-06  1.787e-06]
     nfev: 1147
     njev: 31
 hess_inv: <36x36 LbfgsInvHessProduct with dtype=float64>

spearman between pred and exact corr:  0.9856973
auc:  0.9995459086368176

We see that the learned function successfully characterize the striped phase. However, what is coming out from the structure of the alpha is mostly the NN interactions. Only NN correlations is not enough to separate the striped phase from the polarized phase. Thus, the SR uses NN links to put negatives weights to the configuations coming from the Neel phase, but also uses other (smaller) links to separate the configurations of the striped phase with the one of the polarized phase. Having small links playing an important role motivates the use of the L1 regularization. It has the effect of making the structure of the alpha more sparse.

res = mySR.train(key, dataset_size=2000, L1_reg=5, print_info=False)

mySR.plot_alpha(topology=topology, edge_scale=20, name='SR1 with L1')
all_alpha_striped['SR1_L1'] = mySR.model.alpha

Since with the L1 regularization, it is coslty to have small links, it has force the model to find another structure. The latter, only composed of NNN links, truely reflect the physics

SR2

## same but with the SR2 objective ##
mySR = SymbolicRegression(dataset,
                          cluster_idx_in_striped,
                          objective='SR2',
                          idx_mu_cluster=latvar['id_lat'][0],
                          VAE_model=VAE_model,
                          VAE_params=VAE_params,
                          mu_cluster = mu0abs.transpose())

key = jax.random.PRNGKey(4352)
res = mySR.train(key)

## plot the alpha ##
topology = [[0,1,2],[5,4,3],[6,7,8]]
mySR.plot_alpha(topology=topology, edge_scale=3, name='SR2')


## plot the prediction ##
p = mySR.compute_and_plot_prediction(name='SR2')


all_alpha_striped['SR2'] = mySR.model.alpha
all_prediction_fx_striped['SR2'] = p

## compute the spearman ##
a = p[:,10:].transpose().reshape(-1)
c = all_data['corr2_exact'][10:,:].reshape(-1)
s = jnp.abs(spearman_rho(a, c))

print('spearman between pred and exact corr: ', s)

## compute the auc ##
scores = p.transpose()[10:,:].reshape(-1)
auc = auc_from_scores_labels(scores, labels_striped)

print('auc: ', auc)
### Start preparing the dataset ###
### Dataset prepared, start the trainnig ###
### Training finished ###
  message: CONVERGENCE: RELATIVE REDUCTION OF F <= FACTR*EPSMCH
  success: True
   status: 0
      fun: 6112.24118796894
        x: [ 1.597e-02 -2.176e-02 ...  4.569e-01  4.823e+00]
      nit: 142
      jac: [ 3.750e+01 -6.173e+01 ... -3.012e+01  4.504e+01]
     nfev: 5920
     njev: 160
 hess_inv: <36x36 LbfgsInvHessProduct with dtype=float64>

spearman between pred and exact corr:  0.9123445
auc:  0.9853782581055307
res = mySR.train(key, dataset_size=2000, L1_reg=5, print_info=False)

mySR.plot_alpha(topology=topology, edge_scale=2, name='SR2 with L1')
all_alpha_striped['SR2_L1'] = mySR.model.alpha

SR3

## same but with the SR3 delta objective ##
mySR = SymbolicRegression(dataset, cluster_idx_in_striped, objective='SR3',
                                type_of_vk = 'delta',
                                idx_mu_cluster=latvar['id_lat'][0],
                                VAE_model=VAE_model,
                                VAE_params=VAE_params,
                                mu_cluster = mu0abs.transpose())
key = jax.random.PRNGKey(43)
res = mySR.train(key)

## plot the alpha ##
mySR.plot_alpha(topology=topology, edge_scale=5, name=r'SR3$\Delta$')

## plot the prediction ##
p = mySR.compute_and_plot_prediction(name=r'SR3$\Delta$')

all_alpha_striped['SR3delta'] = mySR.model.alpha
all_prediction_fx_striped['SR3delta'] = p

## compute the spearman ##
a = p[:,10:].transpose().reshape(-1)
c = all_data['corr2_exact'][10:,:].reshape(-1)
s = jnp.abs(spearman_rho(a, c))

print('spearman between pred and exact corr: ', s)

## compute the auc ##
scores = p.transpose()[10:,:].reshape(-1)
auc = auc_from_scores_labels(scores, labels_striped)

print('auc: ', 1-auc)
### Start preparing the dataset ###
small MLP training started...
step: 0, loss: 0.8306435624033267
step: 200, loss: 0.022729998733001314
step: 400, loss: 0.012853822483299545
step: 600, loss: 0.009001298929735141
step: 800, loss: 0.006472594732634401
step: 1000, loss: 0.0053942774443079475
step: 1200, loss: 0.004843800840597344
step: 1400, loss: 0.004416942913320327
step: 1600, loss: 0.004095027750714443
step: 1800, loss: 0.0038483704481203193
small MLP training finished!

### Dataset prepared, start the trainnig ###
### Training finished ###
  message: CONVERGENCE: NORM OF PROJECTED GRADIENT <= PGTOL
  success: True
   status: 0
      fun: 5.033572095590647e-05
        x: [ 1.583e-01 -3.731e-01 ... -2.044e-01  1.133e-01]
      nit: 1
      jac: [-1.883e-07 -1.702e-06 ... -1.041e-06 -6.664e-07]
     nfev: 74
     njev: 2
 hess_inv: <36x36 LbfgsInvHessProduct with dtype=float64>

spearman between pred and exact corr:  0.9957388
auc:  0.9999091817273635
res = mySR.train(key, dataset_size=2000, L1_reg=0.001, print_info=False)

mySR.plot_alpha(topology=topology, edge_scale=100000, name='SR3delta with L1')
all_alpha_striped['SR3delta_L1'] = mySR.model.alpha

## same but with the SR3 cp objective ##
mySR = SymbolicRegression(dataset, cluster_idx_in_striped, objective='SR3',
                                type_of_vk = 'cp',
                                idx_mu_cluster=latvar['id_lat'][0],
                                VAE_model=VAE_model,
                                VAE_params=VAE_params,
                                mu_cluster = mu0abs.transpose())
key = jax.random.PRNGKey(11122)
model = mySR.train(key)

## plot the alpha ##
mySR.plot_alpha(topology=topology, edge_scale=5, name='SR3 cp')

## plot the prediction ##
p = mySR.compute_and_plot_prediction(name='SR3 cp')

all_alpha_striped['SR3cp'] = mySR.model.alpha
all_prediction_fx_striped['SR3cp'] = p

## compute the spearman ##
a = p[:,10:].transpose().reshape(-1)
c = all_data['corr2_exact'][10:,:].reshape(-1)
s = jnp.abs(spearman_rho(a, c))

print('spearman between pred and exact corr: ', s)


## compute the auc ##
scores = p.transpose()[10:,:].reshape(-1)
auc = auc_from_scores_labels(scores, labels_striped)

print('auc: ', 1-auc)
### Start preparing the dataset ###
small MLP training started...
step: 0, loss: 1.0204663818001058
step: 200, loss: 0.022198006678656765
step: 400, loss: 0.015752300675528446
step: 600, loss: 0.008494966136517072
step: 800, loss: 0.006575532075133302
step: 1000, loss: 0.005692395010923643
step: 1200, loss: 0.005104944107537137
step: 1400, loss: 0.0046760973153922285
step: 1600, loss: 0.004366116851316101
step: 1800, loss: 0.00415812396293911
small MLP training finished!

### Dataset prepared, start the trainnig ###
### Training finished ###
  message: CONVERGENCE: NORM OF PROJECTED GRADIENT <= PGTOL
  success: True
   status: 0
      fun: 3.6736764372466765e-05
        x: [ 3.881e-02 -8.508e-02 ...  4.114e-01 -4.009e-02]
      nit: 2
      jac: [-6.732e-07 -2.398e-07 ... -6.565e-07  2.584e-06]
     nfev: 111
     njev: 3
 hess_inv: <36x36 LbfgsInvHessProduct with dtype=float64>

spearman between pred and exact corr:  0.8544463
auc:  0.9323403868858414
res = mySR.train(key, dataset_size=2000, L1_reg=0.001, print_info=False)

mySR.plot_alpha(topology=topology, edge_scale=10000, name='SR3cp with L1')
all_alpha_striped['SR3cp_L1'] = mySR.model.alpha

Characterising the polarized phase

Finally, we use the symbolic method to find a function characterizing the Polarized phase, or, equivalently, both Neel and striped phase from the rest.

threshold = 1.2
cluster_idx_in_both = jnp.argwhere(((mu0abs<threshold)*1 + (mu0abs<0.5)*1).transpose()!=1)

labels_both = jnp.zeros_like(jnp.mean(dataset.data, axis=(-1,-2)))
for id in cluster_idx_in_both:
  labels_both = labels_both.at[id[0],id[1]].set(1)
labels_both = labels_both[:,:].reshape(-1)

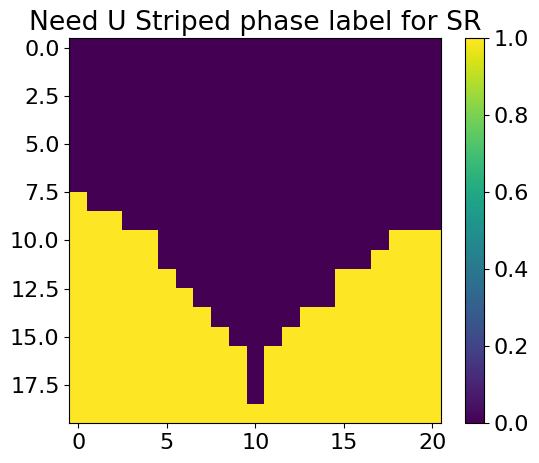

plt.rcParams['font.size'] = 16
plt.figure(figsize=(6,5),dpi=100)

plt.imshow(jnp.flipud(((mu0abs<threshold)*1 + (mu0abs<0.5)*1)!=1), aspect='auto')
plt.colorbar()
plt.title(r'Need U Striped phase label for SR')
plt.show()

SR1

## we then parform SR1 ##
mySR = SymbolicRegression(dataset, cluster_idx_in_both, objective='SR1', search_space = "2_body_correlator" )
key = jax.random.PRNGKey(432)
res = mySR.train(key, dataset_size=2000)

## plot the alpha ##
topology = [[0,1,2],[5,4,3],[6,7,8]]
mySR.plot_alpha(topology=topology, edge_scale=10, name='SR1')

## plot the prediction ##
p = mySR.compute_and_plot_prediction(name='SR1')

## containers to safe the results
all_alpha_both = {}
all_alpha_both['SR1'] = mySR.model.alpha
all_prediction_fx_both = {}
all_prediction_fx_both['SR1'] = p


## compute the spearman ##
#only on the left part of the parameter space where the Neel phase is
a = p[:,:].transpose().reshape(-1)
c = jnp.abs(all_data['corr2_exact'])[:,:].reshape(-1)
s = jnp.abs(spearman_rho(a, c))

print('spearman between pred and exact corr: ', s)

## compute the auc ##
scores = p.transpose().reshape(-1)
auc = auc_from_scores_labels(scores, labels_both)

print('auc: ', auc)
### Start preparing the dataset ###
### Dataset prepared, start the trainnig ###
### Training finished ###
  message: CONVERGENCE: NORM OF PROJECTED GRADIENT <= PGTOL
  success: True
   status: 0
      fun: 0.5392219078205132
        x: [ 2.660e-01  1.081e-01 ...  3.508e-01  3.615e-01]
      nit: 26
      jac: [-8.993e-07  3.497e-06 ...  2.354e-06  6.439e-07]
     nfev: 1184
     njev: 32
 hess_inv: <36x36 LbfgsInvHessProduct with dtype=float64>

spearman between pred and exact corr:  0.94364965
auc:  0.9939087268279815
res = mySR.train(key, dataset_size=2000, L1_reg=5, print_info=False)

mySR.plot_alpha(topology=topology, edge_scale=100, name='SR1 with L1')
all_alpha_both['SR1_L1'] = mySR.model.alpha

With the spins being aligned in the x directions, the polarized case dont have a nice structure in the measurement basis. Thus, the structure of the function characterizing this phase is not very nice

SR2

## same but with the SR2 objective ##
mySR = SymbolicRegression(dataset,
                          cluster_idx_in_both,
                          objective='SR2',
                          idx_mu_cluster=latvar['id_lat'][0],
                          VAE_model=VAE_model,
                          VAE_params=VAE_params,
                          mu_cluster = mu0abs.transpose())

key = jax.random.PRNGKey(996)
res = mySR.train(key)

## plot the alpha ##
topology = [[0,1,2],[5,4,3],[6,7,8]]
mySR.plot_alpha(topology=topology, edge_scale=3, name='SR2')


## plot the prediction ##
p = mySR.compute_and_plot_prediction(name='SR2')


all_alpha_both['SR2'] = mySR.model.alpha
all_prediction_fx_both['SR2'] = p

## compute the spearman ##
a = p[:,:].transpose().reshape(-1)
c = jnp.abs(all_data['corr2_exact'])[:,:].reshape(-1)
s = jnp.abs(spearman_rho(a, c))

print('spearman between pred and exact corr: ', s)

## compute the auc ##
scores = p.transpose().reshape(-1)
auc = auc_from_scores_labels(scores, labels_both)

print('auc: ', auc)
### Start preparing the dataset ###
### Dataset prepared, start the trainnig ###
### Training finished ###
  message: CONVERGENCE: RELATIVE REDUCTION OF F <= FACTR*EPSMCH
  success: True
   status: 0
      fun: 10732.869753169098
        x: [ 8.631e-03 -5.888e-03 ...  6.422e-02  1.905e+00]
      nit: 99
      jac: [-9.387e+02  2.210e+03 ... -1.967e+03  1.093e+02]
     nfev: 7474
     njev: 202
 hess_inv: <36x36 LbfgsInvHessProduct with dtype=float64>

spearman between pred and exact corr:  0.0026733226
auc:  0.4688361831218974
res = mySR.train(key, dataset_size=2000, L1_reg=10, print_info=False)

mySR.plot_alpha(topology=topology, edge_scale=2, name='SR2 with L1')
all_alpha_both['SR2_L1'] = mySR.model.alpha

SR3

## same but with the SR3 delta objective ##
mySR = SymbolicRegression(dataset, cluster_idx_in_both, objective='SR3',
                                type_of_vk = 'delta',
                                idx_mu_cluster=latvar['id_lat'][0],
                                VAE_model=VAE_model,
                                VAE_params=VAE_params,
                                mu_cluster = mu0abs.transpose())
key = jax.random.PRNGKey(439)
res = mySR.train(key)

## plot the alpha ##
mySR.plot_alpha(topology=topology, edge_scale=5, name=r'SR3$\Delta$')

## plot the prediction ##
p = mySR.compute_and_plot_prediction(name=r'SR3$\Delta$')

all_alpha_both['SR3delta'] = mySR.model.alpha
all_prediction_fx_both['SR3delta'] = p

## compute the spearman ##
a = p[:,:].transpose().reshape(-1)
c = jnp.abs(all_data['corr2_exact'])[:,:].reshape(-1)
s = jnp.abs(spearman_rho(a, c))

print('spearman between pred and exact corr: ', s)

## compute the auc ##
scores = p.transpose().reshape(-1)
auc = auc_from_scores_labels(scores, labels_both)

print('auc: ', 1-auc)
### Start preparing the dataset ###
small MLP training started...
step: 0, loss: 1.5711885593078965
step: 200, loss: 0.029661849174511697
step: 400, loss: 0.019414914643345688
step: 600, loss: 0.01446558024228287
step: 800, loss: 0.011838310234110156
step: 1000, loss: 0.010241172457702667
step: 1200, loss: 0.008904530822363583
step: 1400, loss: 0.007550049233107614
step: 1600, loss: 0.006433031709706265
step: 1800, loss: 0.005693161142466824
small MLP training finished!

### Dataset prepared, start the trainnig ###
### Training finished ###
  message: CONVERGENCE: NORM OF PROJECTED GRADIENT <= PGTOL
  success: True
   status: 0
      fun: 2.616992265663539e-05
        x: [ 6.206e-02 -3.043e-01 ... -2.726e-01 -5.906e-03]
      nit: 2
      jac: [-1.459e-06  1.605e-08 ... -2.588e-07 -7.735e-07]
     nfev: 111
     njev: 3
 hess_inv: <36x36 LbfgsInvHessProduct with dtype=float64>

spearman between pred and exact corr:  0.9798321
auc:  0.9979136190316314
res = mySR.train(key, dataset_size=2000, L1_reg=0.001, print_info=False)

mySR.plot_alpha(topology=topology, edge_scale=200000, name='SR3delta with L1')
all_alpha_both['SR3delta_L1'] = mySR.model.alpha

## same but with the SR3 cp objective ##
mySR = SymbolicRegression(dataset, cluster_idx_in_both, objective='SR3',
                                type_of_vk = 'cp',
                                idx_mu_cluster=latvar['id_lat'][0],
                                VAE_model=VAE_model,
                                VAE_params=VAE_params,
                                mu_cluster = mu0abs.transpose())
key = jax.random.PRNGKey(54631)
model = mySR.train(key)

## plot the alpha ##
mySR.plot_alpha(topology=topology, edge_scale=5, name='SR3 cp')

## plot the prediction ##
p = mySR.compute_and_plot_prediction(name='SR3 cp')

all_alpha_both['SR3cp'] = mySR.model.alpha
all_prediction_fx_both['SR3cp'] = p

## compute the spearman ##
a = p[:,:].transpose().reshape(-1)
c = jnp.abs(all_data['corr2_exact'])[:,:].reshape(-1)
s = jnp.abs(spearman_rho(a, c))

print('spearman between pred and exact corr: ', s)

## compute the auc ##
scores = p.transpose().reshape(-1)
auc = auc_from_scores_labels(scores, labels_both)

print('auc: ', auc)
### Start preparing the dataset ###
small MLP training started...
step: 0, loss: 0.8257745814735783
step: 200, loss: 0.01860260827326228
step: 400, loss: 0.011823513169308493
step: 600, loss: 0.007060975685731395
step: 800, loss: 0.00489831556162105
step: 1000, loss: 0.004153469428332058
step: 1200, loss: 0.0037614909812640936
step: 1400, loss: 0.0035468095783897195
step: 1600, loss: 0.0034031894757354936
step: 1800, loss: 0.0032945502351812675
small MLP training finished!

### Dataset prepared, start the trainnig ###
### Training finished ###
  message: CONVERGENCE: NORM OF PROJECTED GRADIENT <= PGTOL
  success: True
   status: 0
      fun: 2.5508192516536702e-05
        x: [ 9.475e-03  1.658e-01 ...  5.183e-01  1.482e-01]
      nit: 1
      jac: [-5.482e-07  8.301e-07 ...  5.014e-06 -3.561e-06]
     nfev: 74
     njev: 2
 hess_inv: <36x36 LbfgsInvHessProduct with dtype=float64>

spearman between pred and exact corr:  0.9045025
auc:  0.9791841530971965
res = mySR.train(key, dataset_size=2000, L1_reg=0.001, print_info=False)

mySR.plot_alpha(topology=topology, edge_scale=20000, name='SR3cp with L1')
all_alpha_both['SR3cp_L1'] = mySR.model.alpha

## also add the data and the exact corr ##

all_data['alpha_neel'] = all_alpha_neel
all_data['prediction_fx_neel'] = all_prediction_fx_neel
all_data['alpha_striped'] = all_alpha_striped
all_data['prediction_fx_striped'] = all_prediction_fx_striped
all_data['alpha_both'] = all_alpha_both
all_data['prediction_fx_both'] = all_prediction_fx_both
## plus some other values needed for some plots
mySR = SymbolicRegression(dataset, cluster_idx_in_neel, objective='SR3',
                                type_of_vk = 'delta',
                                idx_mu_cluster=latvar['id_lat'][0],
                                VAE_model=VAE_model,
                                VAE_params=VAE_params,
                                mu_cluster = mu0abs.transpose())
key = jax.random.PRNGKey(89)
G = mySR.get_grad_mu_wrt_theta_SR3(key, cluster_idx_in_neel)
all_data['grad_mu1_neel_boundaries'] = G
small MLP training started...
step: 0, loss: 0.9165100857669783
step: 200, loss: 0.023040097177329327
step: 400, loss: 0.018953575042534948
step: 600, loss: 0.014705703456012941
step: 800, loss: 0.009733298547767298
step: 1000, loss: 0.006713810330803795
step: 1200, loss: 0.005106953388377555
step: 1400, loss: 0.0045086195023626464
step: 1600, loss: 0.0041721548633482375
step: 1800, loss: 0.0039043747535851977
small MLP training finished!

with open('J1J2_data_cpVAE2_QDisc.pkl', 'wb') as f:
    pickle.dump(all_data, f)

Challenging the robustness of SR1

We will now test the robustness of SR1 with respect to changes in the labels definition. We will then observe the effect on the structure of the learned expression, as well as on the various performance metrics.
Both with and without a L1 regularization will be considered.

## 'True' labels used above ##
mu0abs = latvar['mu0_abs']
threshold = 0.5
cluster_idx_in_neel = jnp.argwhere(mu0abs.transpose()<threshold)

labels_neel = jnp.zeros_like(jnp.mean(dataset.data, axis=(-1,-2)))
for id in cluster_idx_in_neel:
  labels_neel = labels_neel.at[id[0],id[1]].set(1)
labels_neel = labels_neel[:10,:].reshape(-1)

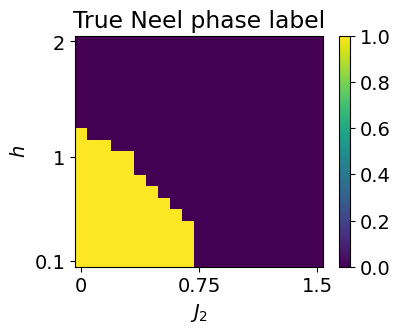

plt.rcParams['font.size'] = 14
plt.figure(figsize=(4,3),dpi=100)

plt.imshow(jnp.flipud(mu0abs<threshold), aspect='auto')
plt.colorbar()
plt.title(r'True Neel phase label')
plt.yticks([0,10,19], ['2', '1', '0.1'])
plt.xticks([0, 10, 20], ['0', '0.75', '1.5'])
plt.ylabel(r'$h$')
plt.xlabel(r'$J_2$')
plt.show()



label_neel_noise1 = jnp.zeros((dataset.data.shape[1], dataset.data.shape[0]))
label_neel_noise2 = jnp.zeros_like(label_neel_noise1)
label_neel_noise3 = jnp.zeros_like(label_neel_noise1)


for i in range(label_neel_noise1.shape[0]):
    for j in range(label_neel_noise1.shape[1]):
        if i + 1.2*j < 8:
            label_neel_noise1 = label_neel_noise1.at[i,j].set(1)
        if i + 1.4*j < 20 and j<13:
            label_neel_noise2 = label_neel_noise2.at[i,j].set(1)
        if j<4:
            label_neel_noise3 = label_neel_noise3.at[i,j].set(1)

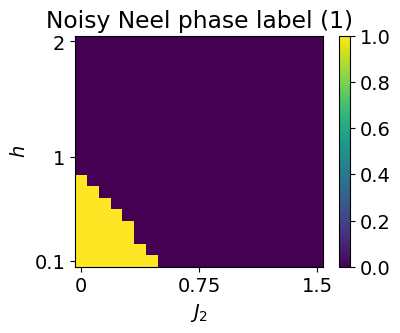

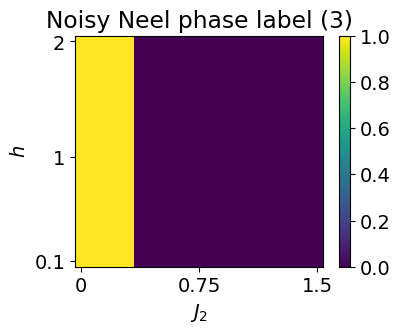

all_noise_label = [label_neel_noise1.T, label_neel_noise2.T, label_neel_noise3.T]

for i,l in enumerate(all_noise_label):

        plt.rcParams['font.size'] = 14
        plt.figure(figsize=(4,3),dpi=100)

        plt.imshow(jnp.rot90(l), aspect='auto')
        plt.colorbar()
        plt.title(r'Noisy Neel phase label ({})'.format(i+1))
        plt.yticks([0,10,19], ['2', '1', '0.1'])
        plt.xticks([0, 10, 20], ['0', '0.75', '1.5'])
        plt.ylabel(r'$h$')
        plt.xlabel(r'$J_2$')
        plt.show()

without L1

topology = [[0,1,2],[5,4,3],[6,7,8]]

key = jax.random.PRNGKey(534)

all_spearman_SR1 = []
all_auc_SR1 = []
all_alpha_SR1 = []
example_labels = []
example_pred = []
all_percentage_in_in_in_label = []
all_percentage_in_in_out_label = []
all_percentage_out_in_in_label = []
all_percentage_out_in_out_label = []


for label in all_noise_label:
    all_s = []
    all_auc = []
    all_alpha = []
    percentage_in_in_in_label = []
    percentage_in_in_out_label = []
    percentage_out_in_in_label = []
    percentage_out_in_out_label = []
    l1 = 0
    for i in range(10):

        cluster_idx_in_neel_noisy = jnp.argwhere(label==1)

        if i == 0:

            example_labels.append(label)

            plt.rcParams['font.size'] = 16
            plt.figure(figsize=(4,3),dpi=80)

            plt.imshow(jnp.rot90(label), aspect='auto')
            plt.colorbar()
            plt.title('Neel phase label for SR')
            plt.yticks([0,10,19], ['2', '1', '0.1'])
            plt.xticks([0, 10, 20], ['0', '0.75', '1.5'])
            plt.ylabel(r'$h$')
            plt.xlabel(r'$J_2$')
            plt.show()


        ## perform SR1 on the neel phase ##

        mySR = SymbolicRegression(dataset, cluster_idx_in_neel_noisy, objective='SR1', search_space = "2_body_correlator")
        key, subkey = jax.random.split(key)
        res = mySR.train(subkey, dataset_size=2000, print_info = False)

        all_alpha.append(mySR.model.alpha)
        if i == 0:
            mySR.plot_alpha(topology=topology, edge_scale=5, name='SR1')

        if i == 0:
            p = mySR.compute_and_plot_prediction(name='SR1')
            _ = mySR.compute_and_plot_prediction(name='SR1', class_pred=True)
            example_pred.append(p)
        else:
            p = mySR.compute_prediction()
        a = p[:,:10].transpose().reshape(-1)
        s = jnp.abs(spearman_rho(a, c))

        all_s.append(s)

        scores = p.transpose()[:10,:].reshape(-1)
        auc = auc_from_scores_labels(scores, labels_neel)

        if auc < 0.5:
            auc = 1 - auc

        all_auc.append(auc)


        parameter_space_shape = [len(dataset.thetas[i]) for i in range(len(dataset.thetas))]
        grid = jnp.indices(parameter_space_shape)      # (k, ...)
        grid = grid.reshape(len(parameter_space_shape), -1).T  # (N, k)
        equal = jnp.all(grid[:, None, :] == cluster_idx_in_neel[None, :, :], axis=-1)
        in_cluster = jnp.any(equal, axis=1)
        cluster_idx_out_neel = grid[~in_cluster]

        cluster_idx_out_neel_noisy = mySR.cluster_idx_out

        in_in_in_label = sum([(jnp.sum(jnp.array([idx == o for o in cluster_idx_in_neel]), axis=-1) == 2).any() for idx in cluster_idx_in_neel_noisy])/jnp.shape(cluster_idx_in_neel_noisy)[0]
        percentage_in_in_in_label.append(in_in_in_label)

        in_in_out_label = sum([(jnp.sum(jnp.array([idx == o for o in cluster_idx_out_neel]), axis=-1) == 2).any() for idx in cluster_idx_in_neel_noisy])/jnp.shape(cluster_idx_in_neel_noisy)[0]
        percentage_in_in_out_label.append(in_in_out_label)

        out_in_in_label = sum([(jnp.sum(jnp.array([idx == o for o in cluster_idx_in_neel]), axis=-1) == 2).any() for idx in cluster_idx_out_neel_noisy])/jnp.shape(cluster_idx_out_neel_noisy)[0]
        percentage_out_in_in_label.append(out_in_in_label)

        out_in_out_label = sum([(jnp.sum(jnp.array([idx == o for o in cluster_idx_out_neel]), axis=-1) == 2).any() for idx in cluster_idx_out_neel_noisy])/jnp.shape(cluster_idx_out_neel_noisy)[0]
        percentage_out_in_out_label.append(out_in_out_label)

        print('In in in: {:.2f}%, in in out: {:.2f}%, out in in: {:.2f}%, out in out: {:.2f}%, s={:.4f}, auc={:.4f}, final loss = {:.3}'.format(in_in_in_label*100, in_in_out_label*100, out_in_in_label*100, out_in_out_label*100, s,auc, res[1]['fun']))

    all_spearman_SR1.append(all_s)
    all_alpha_SR1.append(all_alpha)
    all_auc_SR1.append(all_auc)
    all_percentage_in_in_in_label.append(percentage_in_in_in_label)
    all_percentage_in_in_out_label.append(percentage_in_in_out_label)
    all_percentage_out_in_in_label.append(percentage_out_in_in_label)
    all_percentage_out_in_out_label.append(percentage_out_in_out_label)


all_data_robustness_SR1 = {}
all_data_robustness_SR1['spearman'] = all_spearman_SR1
all_data_robustness_SR1['alpha'] = all_alpha_SR1
all_data_robustness_SR1['auc'] = all_auc_SR1
all_data_robustness_SR1['in_in_in'] = all_percentage_in_in_in_label
all_data_robustness_SR1['out_in_out'] = all_percentage_out_in_out_label
all_data_robustness_SR1['example_label'] = example_labels
all_data_robustness_SR1['example_pred'] = example_pred

In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9688, auc=0.9991, final loss = 0.377
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9693, auc=0.9991, final loss = 0.373
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9681, auc=0.9987, final loss = 0.369
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9691, auc=0.9993, final loss = 0.378
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9682, auc=0.9992, final loss = 0.373
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9695, auc=0.9991, final loss = 0.379
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9684, auc=0.9991, final loss = 0.38
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9684, auc=0.9993, final loss = 0.374
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9680, auc=0.9991, final loss = 0.354
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9703, auc=0.9993, final loss = 0.359

In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9912, auc=0.9997, final loss = 0.423
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9893, auc=0.9998, final loss = 0.419
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9897, auc=0.9997, final loss = 0.43
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9901, auc=0.9997, final loss = 0.427
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9889, auc=0.9997, final loss = 0.426
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9900, auc=0.9997, final loss = 0.429
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9899, auc=0.9997, final loss = 0.424
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9909, auc=0.9997, final loss = 0.415
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9895, auc=0.9998, final loss = 0.422
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9888, auc=0.9997, final loss = 0.421

In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9800, auc=0.9992, final loss = 0.44
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9814, auc=0.9994, final loss = 0.446
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9807, auc=0.9994, final loss = 0.449
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9796, auc=0.9992, final loss = 0.456
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9787, auc=0.9991, final loss = 0.445
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9803, auc=0.9992, final loss = 0.453
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9810, auc=0.9993, final loss = 0.467
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9793, auc=0.9992, final loss = 0.453
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9803, auc=0.9992, final loss = 0.455
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9823, auc=0.9993, final loss = 0.444
all_spearman_SR1 = jnp.array(all_data_robustness_SR1['spearman'])
all_auc_SR1 = jnp.array(all_data_robustness_SR1['auc'])
all_percentage_in_in_in_label = jnp.array(all_data_robustness_SR1['in_in_in'])
all_percentage_out_in_out_label = jnp.array(all_data_robustness_SR1['out_in_out'])


print('all percentage noisy in labels:')
for (m,s) in zip(jnp.mean(all_percentage_in_in_in_label, axis=-1), jnp.std(all_percentage_in_in_in_label, axis=-1)):
    print(str(m) + ' +/- ' + str(s))

print('\n')

print('all percentage noisy out labels:')
for (m,s) in zip(jnp.mean(all_percentage_out_in_out_label, axis=-1), jnp.std(all_percentage_out_in_out_label, axis=-1)):
    print(str(m) + ' +/- ' + str(s))

print('\n')

print('all spearman measures:')
for (m,s) in zip(jnp.mean(all_spearman_SR1, axis=-1), jnp.std(all_spearman_SR1, axis=-1)):
    print(str(m) + ' +/- ' + str(s))

print('\n')

print('all auc measures:')
for (m,s) in zip(jnp.mean(all_auc_SR1, axis=-1), jnp.std(all_auc_SR1, axis=-1)):
    print(str(m) + ' +/- ' + str(s))
all percentage noisy in labels:
1.0 +/- 0.0
0.5384615384615384 +/- 0.0
0.54 +/- 0.0


all percentage noisy out labels:
0.8682170542635659 +/- 0.0
1.0 +/- 0.0
0.90625 +/- 0.0


all spearman measures:
0.9688202 +/- 0.0006923764
0.9898391 +/- 0.0007568837
0.9803551 +/- 0.000980462


all auc measures:
0.9991071428571425 +/- 0.00017203463274056898
0.9997126436781607 +/- 4.105090311989912e-05
0.9992302955665023 +/- 9.4617656581399e-05

In terms of performance, we see that SR1 is extremely robust. In terms of interpretability, the structure of the two body weights starts to have small links trying to compensate the mislabelization. We will now investigate whether adding an L1 regularisation would help maintain a good structure for longer and how it affects the performance.

with L1

topology = [[0,1,2],[5,4,3],[6,7,8]]

key = jax.random.PRNGKey(534)

all_spearman_SR1 = []
all_auc_SR1 = []
all_alpha_SR1 = []
example_labels = []
example_pred = []
all_percentage_in_in_in_label = []
all_percentage_in_in_out_label = []
all_percentage_out_in_in_label = []
all_percentage_out_in_out_label = []


all_l1 = [2, 2, 2, 2]

for j, label in enumerate(all_noise_label):
    all_s = []
    all_auc = []
    all_alpha = []
    percentage_in_in_in_label = []
    percentage_in_in_out_label = []
    percentage_out_in_in_label = []
    percentage_out_in_out_label = []
    l1 = all_l1[j]
    for i in range(10):

        cluster_idx_in_neel_noisy = jnp.argwhere(label==1)

        if i == 0:

            example_labels.append(label)

            plt.rcParams['font.size'] = 16
            plt.figure(figsize=(4,3),dpi=80)

            plt.imshow(jnp.rot90(label), aspect='auto')
            plt.colorbar()
            plt.title('Neel phase label for SR')
            plt.yticks([0,10,19], ['2', '1', '0.1'])
            plt.xticks([0, 10, 20], ['0', '0.75', '1.5'])
            plt.ylabel(r'$h$')
            plt.xlabel(r'$J_2$')
            plt.show()


        ## perform SR1 on the neel phase ##

        mySR = SymbolicRegression(dataset, cluster_idx_in_neel_noisy, objective='SR1', search_space = "2_body_correlator")
        key, subkey = jax.random.split(key)
        res = mySR.train(subkey, dataset_size=2000, print_info = False, L1_reg = l1)

        all_alpha.append(mySR.model.alpha)
        if i == 0:
            mySR.plot_alpha(topology=topology, edge_scale=40, name='SR1')

        if i == 0:
            p = mySR.compute_and_plot_prediction(name='SR1')
            _ = mySR.compute_and_plot_prediction(name='SR1', class_pred=True)
            example_pred.append(p)
        else:
            p = mySR.compute_prediction()
        a = p[:,:10].transpose().reshape(-1)
        s = jnp.abs(spearman_rho(a, c))

        all_s.append(s)

        scores = p.transpose()[:10,:].reshape(-1)
        auc = auc_from_scores_labels(scores, labels_neel)

        if auc < 0.5:
            auc = 1 - auc

        all_auc.append(auc)


        parameter_space_shape = [len(dataset.thetas[i]) for i in range(len(dataset.thetas))]
        grid = jnp.indices(parameter_space_shape)      # (k, ...)
        grid = grid.reshape(len(parameter_space_shape), -1).T  # (N, k)
        equal = jnp.all(grid[:, None, :] == cluster_idx_in_neel[None, :, :], axis=-1)
        in_cluster = jnp.any(equal, axis=1)
        cluster_idx_out_neel = grid[~in_cluster]

        cluster_idx_out_neel_noisy = mySR.cluster_idx_out

        in_in_in_label = sum([(jnp.sum(jnp.array([idx == o for o in cluster_idx_in_neel]), axis=-1) == 2).any() for idx in cluster_idx_in_neel_noisy])/jnp.shape(cluster_idx_in_neel_noisy)[0]
        percentage_in_in_in_label.append(in_in_in_label)

        in_in_out_label = sum([(jnp.sum(jnp.array([idx == o for o in cluster_idx_out_neel]), axis=-1) == 2).any() for idx in cluster_idx_in_neel_noisy])/jnp.shape(cluster_idx_in_neel_noisy)[0]
        percentage_in_in_out_label.append(in_in_out_label)

        out_in_in_label = sum([(jnp.sum(jnp.array([idx == o for o in cluster_idx_in_neel]), axis=-1) == 2).any() for idx in cluster_idx_out_neel_noisy])/jnp.shape(cluster_idx_out_neel_noisy)[0]
        percentage_out_in_in_label.append(out_in_in_label)

        out_in_out_label = sum([(jnp.sum(jnp.array([idx == o for o in cluster_idx_out_neel]), axis=-1) == 2).any() for idx in cluster_idx_out_neel_noisy])/jnp.shape(cluster_idx_out_neel_noisy)[0]
        percentage_out_in_out_label.append(out_in_out_label)

        print('In in in: {:.2f}%, in in out: {:.2f}%, out in in: {:.2f}%, out in out: {:.2f}%, s={:.4f}, auc={:.4f}, final loss = {:.3}'.format(in_in_in_label*100, in_in_out_label*100, out_in_in_label*100, out_in_out_label*100, s,auc, res[1]['fun']))

    all_spearman_SR1.append(all_s)
    all_alpha_SR1.append(all_alpha)
    all_auc_SR1.append(all_auc)
    all_percentage_in_in_in_label.append(percentage_in_in_in_label)
    all_percentage_in_in_out_label.append(percentage_in_in_out_label)
    all_percentage_out_in_in_label.append(percentage_out_in_in_label)
    all_percentage_out_in_out_label.append(percentage_out_in_out_label)



all_data_robustness_SR1_l1 = {}
all_data_robustness_SR1_l1['spearman'] = all_spearman_SR1
all_data_robustness_SR1_l1['alpha'] = all_alpha_SR1
all_data_robustness_SR1_l1['auc'] = all_auc_SR1
all_data_robustness_SR1_l1['in_in_in'] = all_percentage_in_in_in_label
all_data_robustness_SR1_l1['out_in_out'] = all_percentage_out_in_out_label
all_data_robustness_SR1_l1['example_label'] = example_labels
all_data_robustness_SR1_l1['example_pred'] = example_pred

In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9898, auc=0.9996, final loss = 0.551
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9895, auc=0.9996, final loss = 0.548
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9896, auc=0.9996, final loss = 0.55
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9892, auc=0.9996, final loss = 0.552
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9897, auc=0.9996, final loss = 0.549
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9894, auc=0.9996, final loss = 0.548
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9892, auc=0.9996, final loss = 0.548
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9896, auc=0.9996, final loss = 0.549
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9896, auc=0.9996, final loss = 0.54
In in in: 100.00%, in in out: 0.00%, out in in: 13.18%, out in out: 86.82%, s=0.9898, auc=0.9996, final loss = 0.537

In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9895, auc=0.9996, final loss = 0.551
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9894, auc=0.9996, final loss = 0.552
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9901, auc=0.9996, final loss = 0.56
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9896, auc=0.9996, final loss = 0.554
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9896, auc=0.9996, final loss = 0.559
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9897, auc=0.9996, final loss = 0.556
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9895, auc=0.9996, final loss = 0.557
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9894, auc=0.9996, final loss = 0.548
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9897, auc=0.9996, final loss = 0.553
In in in: 53.85%, in in out: 46.15%, out in in: 0.00%, out in out: 100.00%, s=0.9897, auc=0.9996, final loss = 0.553

In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9897, auc=0.9995, final loss = 0.571
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9896, auc=0.9996, final loss = 0.572
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9895, auc=0.9996, final loss = 0.576
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9893, auc=0.9996, final loss = 0.582
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9898, auc=0.9996, final loss = 0.573
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9896, auc=0.9996, final loss = 0.577
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9894, auc=0.9995, final loss = 0.585
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9894, auc=0.9997, final loss = 0.576
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9893, auc=0.9996, final loss = 0.581
In in in: 54.00%, in in out: 46.00%, out in in: 9.38%, out in out: 90.62%, s=0.9896, auc=0.9996, final loss = 0.57
all_spearman_SR1 = jnp.array(all_data_robustness_SR1_l1['spearman'])
all_auc_SR1 = jnp.array(all_data_robustness_SR1_l1['auc'])
all_percentage_in_in_in_label = jnp.array(all_data_robustness_SR1_l1['in_in_in'])
all_percentage_out_in_out_label = jnp.array(all_data_robustness_SR1_l1['out_in_out'])


print('all percentage noisy in labels:')
for (m,s) in zip(jnp.mean(all_percentage_in_in_in_label, axis=-1), jnp.std(all_percentage_in_in_in_label, axis=-1)):
    print(str(m) + ' +/- ' + str(s))

print('\n')

print('all percentage noisy out labels:')
for (m,s) in zip(jnp.mean(all_percentage_out_in_out_label, axis=-1), jnp.std(all_percentage_out_in_out_label, axis=-1)):
    print(str(m) + ' +/- ' + str(s))

print('\n')

print('all spearman measures:')
for (m,s) in zip(jnp.mean(all_spearman_SR1, axis=-1), jnp.std(all_spearman_SR1, axis=-1)):
    print(str(m) + ' +/- ' + str(s))

print('\n')

print('all auc measures:')
for (m,s) in zip(jnp.mean(all_auc_SR1, axis=-1), jnp.std(all_auc_SR1, axis=-1)):
    print(str(m) + ' +/- ' + str(s))
all percentage noisy in labels:
1.0 +/- 0.0
0.5384615384615384 +/- 0.0
0.54 +/- 0.0


all percentage noisy out labels:
0.8682170542635659 +/- 0.0
1.0 +/- 0.0
0.90625 +/- 0.0


all spearman measures:
0.9895446 +/- 0.00019946064
0.9896019 +/- 0.00018373126
0.98951226 +/- 0.00015033506


all auc measures:
0.9995894909688012 +/- 1.1102230246251565e-16
0.9995894909688012 +/- 1.1102230246251565e-16
0.9995792282430213 +/- 5.52664696955324e-05

We see that incorporating L1 regularization further enhances both performance and stability. The structure of the learned two-body coefficients remains largely intact. Even with a poor labelization, SR1 with the L1 regularization is able to learn structures matching the NNN correlator. In addition, the predicted function f(x) consistently highlights the Néel phase across all noise levels considered, underscoring the robustness of the SR1 approach.

## saving the data :) ##

all_data['robustness_SR1'] = all_data_robustness_SR1
all_data['robustness_SR1_l1'] = all_data_robustness_SR1_l1

with open('J1J2_data_cpVAE2_QDisc.pkl', 'wb') as f:
    pickle.dump(all_data, f)
